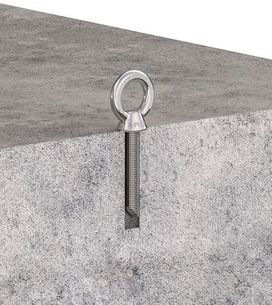

XPLORA Concrete Mount Anchor Point, M16 x 100mm - 15kN
Stock Code:
AP125A
Price:
$68.20 inc GST
Kattsafe 316 stainless steel Eyebolt: M16 x 100mm Eyelet: 35mm Epoxy adhesive fix required (not supplied) Drilled hole diameter: 18mm x 110mm deep Minimum concrete thickness: 150mm Minimum concrete edge distance: 200mm Minimum anchor spacing: 200mm Minimum concrete strength: 20mpa Concrete structure integrity, suitability and anchor location to be assessed and determined by a competent person before installation. Recommended for single person use - 15kN rated Rope access use: 15kN Fall arrest use: 15kN - Single person use Anchor is to be used in a shear load direction only (pulled at an angle not exceeding 20ΓΈ to the installed surface).
Stock Level:
In Stock Now
