Rock Exotica rockD Orca-Lock Karabiner C2O [29kN]

Stock Code:
125509
Price:
$59.79 inc GST
Stock Level:
In Stock Now

This D features a triple action Orca gate which can be set unlocked to lock once clipped, Keylock non-snag design, high inward gate strength and a slightly offset gate for extra wide opening. Gate ORCA-lock Ref # C1 O MBS-Major 26kN MBS-Minor 11kN MBS-Open 7kN Gate Opening 1.0" (25 mm) Weight 3.12 oz (89 gm) Height 4.2" (107 mm) Width 2.8" (71 mm) Color Orange/Black Certification CE

Detailed Description

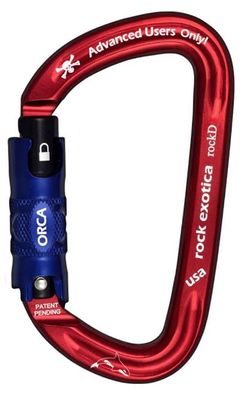

The Rock Exotica rockD ORCA-Lock (C2O) is a premium, high-strength aluminium karabiner designed for rope access, rescue, arboriculture, rigging, and industrial work-at-height applications. It is built around a narrow asymmetrical D-shaped frame that naturally directs loads onto the spine of the connector, maximizing strength and minimizing the risk of cross-loading. The forged and machined I-beam frame provides excellent strength while maintaining a lightweight 80g design.

A key feature of the C2O is the proprietary ORCA-Lock gate mechanism. Unlike a standard auto-locking karabiner, the ORCA system can be placed in a "ready" position, allowing the gate to function like a non-locking connector for fast and repeated clipping operations. Once the gate is released and closes, it automatically returns to a secure locked state. This makes it particularly useful in situations where speed and efficiency are important while still maintaining the security of an auto-locking connector.

The ORCA mechanism uses a triple-action opening sequence:

  1. Push up the locking sleeve
  2. Twist the sleeve
  3. Open the gate

This significantly reduces the likelihood of accidental gate opening while allowing smooth one-handed operation.

The karabiner also incorporates a Keylock nose that eliminates snagging on ropes, webbing, anchors, pulleys, and harness attachment points. Its large ergonomic gate opening improves handling when wearing gloves and when connecting multiple components.



Specifications

Lock Type Triple action
Material Aluminum
Weight 80g
Major axis strength 29kN
Minor axis strength 11kN
Gate opening 24mm
Colour Red
Dimensions 68mmx114mm
Compliance 29kN
Traceability # Yes
RFID No
